Key Benefits:
.
Two piece subframes allow for easier installation. Heavy duty 1/4" thick laser cut brackets used throughout the kit. No drive shaft modification required.

Chevy 1500 - Silverado

.
4" Suspension System

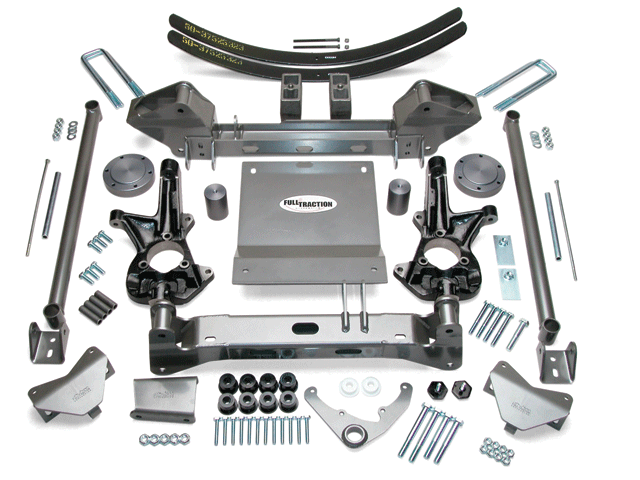

The Full-Traction Chevrolet K1500 IFS 4wd 4.0" lift is a complete bolt-on kit and includes the best quality high strength components available. Complete system includes: Front differential drop brackets, cast steering knuckles, 2-piece MIG-welded dual subframes. Dual subframes allow easier installation than one-piece types. Heavy duty center skid plate increases strength and protection. Torsion bar cross-member drop brackets, billet front axle drive shaft spacers, extended front and rear sway bar links, rear blocks, polyurethane and delrin bushings, cad plated hardware.

Precision laser crafted components and top quality plated hardware means excellent fit, corrosion resistance, and long service life. Powder coat finish. Optional front skid plate available.



.
Part: FTS4101
Fits: 1999–2006 Chevy 1500 - Silverado
Price: 1495.00
.
Notes:
  • The net raised height achieved with this system is dependent upon the adjustment of the torsion bars prior to installation.
  • Kit is designed to lift the rear of the vehicle less than the front to achieve a level effect. Adjust torsion bars to bring the front up and level with the rear.
  • Installation requires grinding or cutting of frame or other mounting surfaces.
  • Optional front skid plate can be purchased separately. Part # FTS4104
Maximum Suspension Performance means Full-Traction
.
