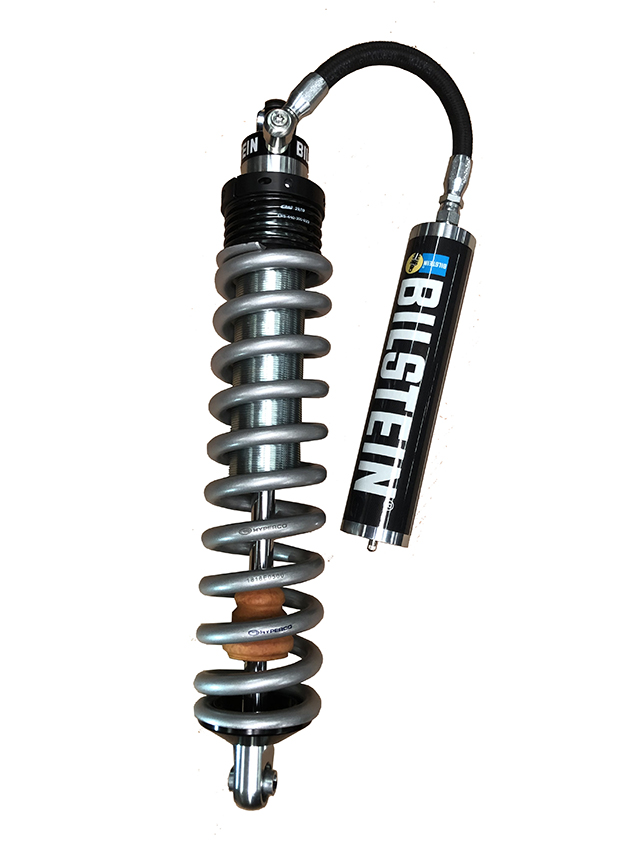

Full-Traction Suspension 6.0-in System includes Front 2.5 Coil-Over Shocks and Rear Bilstein 5100 Series Monotube Gas shocks. Full Traction has the cure for 2000-2004 F250 & F350 Super Duty owners with coil spring envy. This system will convert the Super Duty's conventional leaf spring suspension to a 4-Link front axle mounting with ICG Instant Center Geometry for a true and correct caster curve throughout the entire range of linear wheel travel. 6.0-in lift includes Full-Traction rear replacement leaf springs.

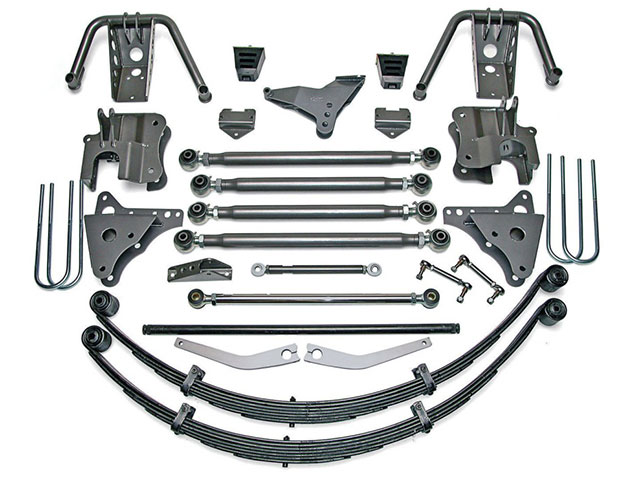

Full-Traction ICG reduces the total caster change throughout the suspension's movement - by over 50%! The result, is a drastically improved "on center" feel, ride quality, and control when driving or towing.Exclusive system includes all necessary components including shock mounts and a trick Nascar-style front sway bar. Astonishingly, this is a fully bolt-on system. Our engineers have created a simple, extremely strong mounting system that requires little maintenance, and is extremely simple to install.
No welding is required to complete installation. Unique system is designed to accept all major aftermarket makes of 2.5" - 3.0" diameter coil-over shocks. You want tough? All components in this suspension system are built for maximum off road punishment or heavy duty commercial use. Extreme duty fully rebuildable rod ends and 2" diameter x .250 wall thickness DOM tubing for our lower leading control arm assemblies. This plus 1/4" plate laser crafted brackets provide exceptional strength. Grade 8 hardware is used throughout. Durable Gray powder coat finish. Also available for early production 1999 Super Duty & Excursion 4wd.
Call our sales dept for details & prices. 4-Link systems are offered as complete & correct engineered systems only. Major brackets & conversion components are not sold independently. Call the Full-Traction Sales Dept with questions or further details concerning lift heights.
Click the link below for the complete installation how-to in 8-Lug Magazine http://www.8-lug.com/tech/0705_8l_full_traction_4_link_coilover_conversion_system/viewall.html
